Technique feature of product：

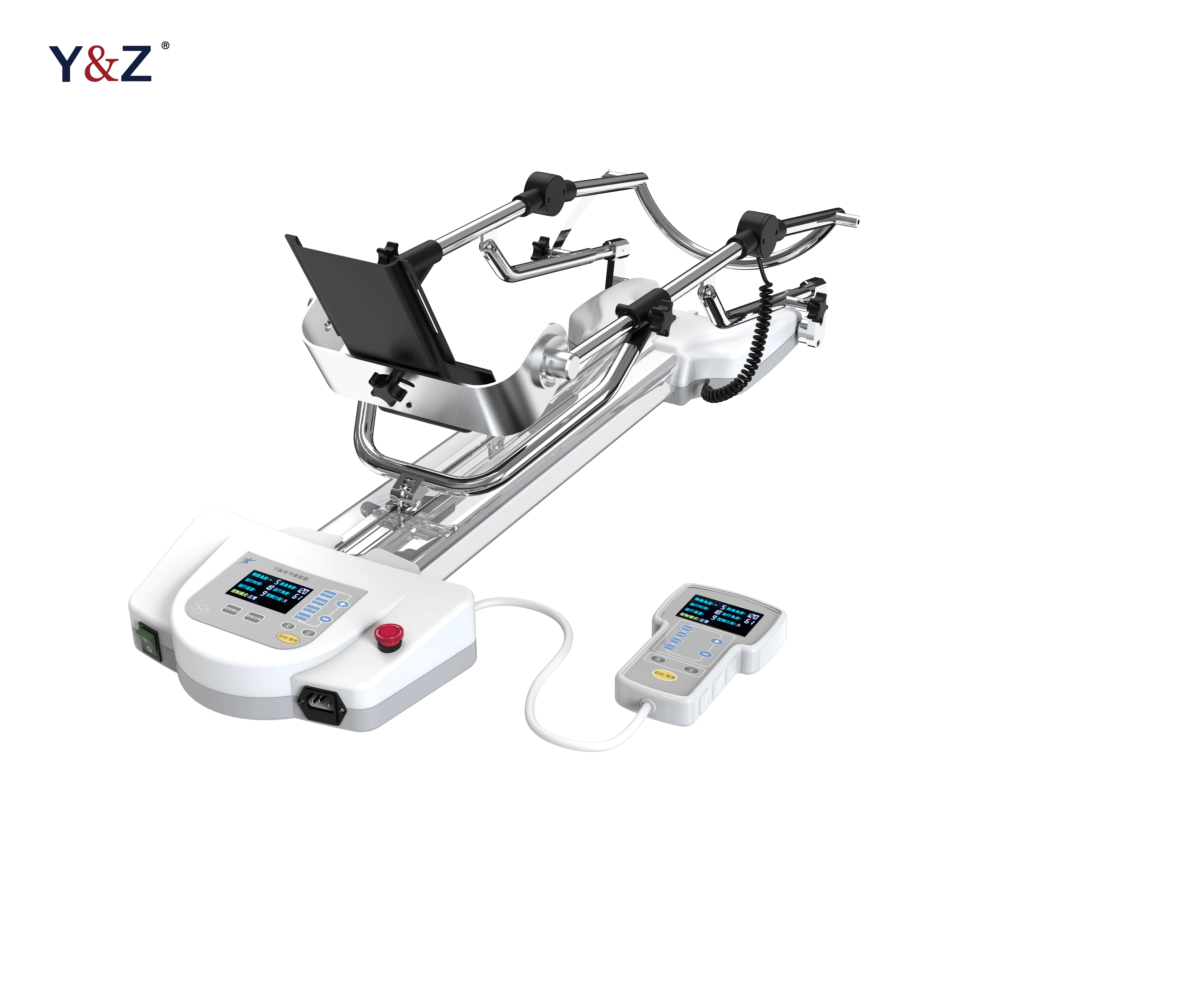

The lower limb CPM （YTK-F）is the newly-designed medical equipment product, the main technique feature of product are as follows:

1. Special designed motor drive, run steadily, low noise, and long span life.

2. Microcomputer digital control design and it also adopt imported integrated parts, high volume imported CPU and intelligent program design, the machine also has the function of over-load protection.

3. Big screen liquid display in English(or Chinese), all the parameters can be read clearly.

4. Considering the need of medical curing, the motion range is wide (add the function of ankle joint movement), the maximum run distance has reached about 500mm.

5. Optimized structure design, reduce the unwell feeling.

6. The power system adopt interference setting, the suitable range is wide.

7. The hand controller can control the most function. Adopt advanced technique.

Main structure

This machine is made up of host computer, supporting pole, leather cushion, hand controller, and so on.

The main capability parameters are as follows:

Angle motion range of kneel joint：-5°—120°(error ±5°)；

Angle motion speed range of hip joint：25°—100°

Angle motion speed range of ankle joint：0°—40°

Angle motion speed range：0.5°—3.5°/s；

Angle motion range of foot plate: ≤40°

Power supply：220Vac，50Hz

Power：≤80W

Technique features:

1. LCD display, dual channel display and control

2. DC motor and planetary gearbox, high safety and efficiency

3. The knee joint sensor controls the angle and has the function of torque protection

4. Angle range: - 5 °- one hundred and twenty °

5. Time: 0-240 minutes
